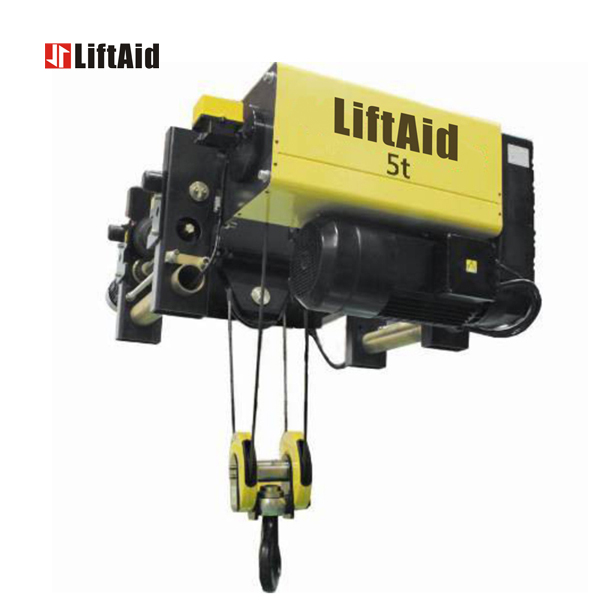

Single girder wire rope hoist



Single girder wire rope hoist

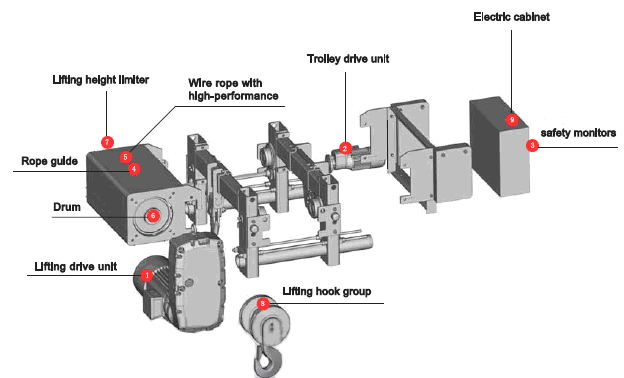

Product Description


1. Hook Block: Safety card as the standard configuration by special mold and adopt high-strenth special slippery rope to reduce the damage to wire rope and ligthen the self weight.

2. Wire rope: Imported from Italy, adopt high-strength wire rope with zinc surfacing-plating,high breaking force and good flexibility(2160/mm^2)

3.Body Structure: Adopt mould stamping or bending steel plate to reduce the use of welding parts and increase the service life and quality of the structure bearing part.

4. Motor:three-in-one imported from Germany. Three in one system integrated by pole-changing professional hoisting motor,brake with electromagnetic disk type and reducer with high rotating speed and hard tooth surface ensures silence and the best safety grade of the hoisting mechanism.

5. Running three in one: international brand three in one sytem ingegrated by frequency-conversion running professional motor, brake with electromagnetic disk type and reducer with hard tooth surface ensures silence and the best positioning accuracy of running mechanism.

6.Worm adjusting limit swich: adopt customized imported four-level limiting stopper to achieve function of slow speed first and then brake of two dimension running to ensure safety an reliable operation.


Capacity

FEM

ISO

Height
(m)

Lifting speed
(m/min)

Trolley speed
(m/min)

H size
(mm)

C size
(mm)

1000

4m

M7

6/9/12/18

0.8/5.0

5-20

245

385

1250

3m

M6

6/9/12/18

0.8/5.0

5-20

245

385

1600

3m

M6

6/9/12/18

0.8/5.0

5-20

245

385

1600

4m

M7

6/9/12/18

1.3/8.0

5-20

245

385

2000

2m

M5

6/9/12/18

0.8/5.0

5-20

245

385

2000

3m

M6

6/9/12/18

1.3/8.0

5-20

245

385

2500

3m

M6

6/9/12/18

0.8/5.0

5-20

245

385

2500

3m

M6

6/9/12/18

1.0/6.3

5-20

245

385

2500

2m

M5

6/9/12/18

1.3/8.0

5-20

245

385

3200

2m

M5

6/9/12/18

0.8/5.0

5-20

245

385

3200

2m

M5

6/9/12/18

1.0/6.3

5-20

245

385

5000

2m

M5

6/9/12/18

0.8/5.0

5-20

266

495

5000

2m

M5

6/9/12/18

1.6/10

5-20

296

792

5000

3m

M6

6/9/12/18

1.3/8.0

5-20

296

792

6300

1Am

M4

6/9/12/18

0.8/5.0

5-20

266

495

6300

1Am

M4

6/9/12/18

1.3/8.0

5-20

266

495

6300

2m

M5

6/9/12/18

1.3/8.0

5-20

266

495

6300

3m

M6

6/9/12/18

1.0/6.3

5-20

266

495

8000

1Am

M4

6/9/12/18

1.3/8.0

5-20

296

792

8000

3m

M6

6/9/12/18

0.8/5.0

5-20

296

792

10000

1Am

M4

6/9/12/18

1.0/6.3

5-20

296

792

10000

2m

M5

6/9/12/18

0.8/5.0

5-20

296

792

10000

3m

M6

6/9/12/18

0.66/4.0

5-20

296

792

12500

1Am

M4

6/9/12/18

0.8/5.0

5-20

296

792

12500

2m

M5

6/9/12/18

0.6/4.0

5-20

296

792

12500

2m

M5

6/9/12/18

0.6/4.0

5-20

296

792
