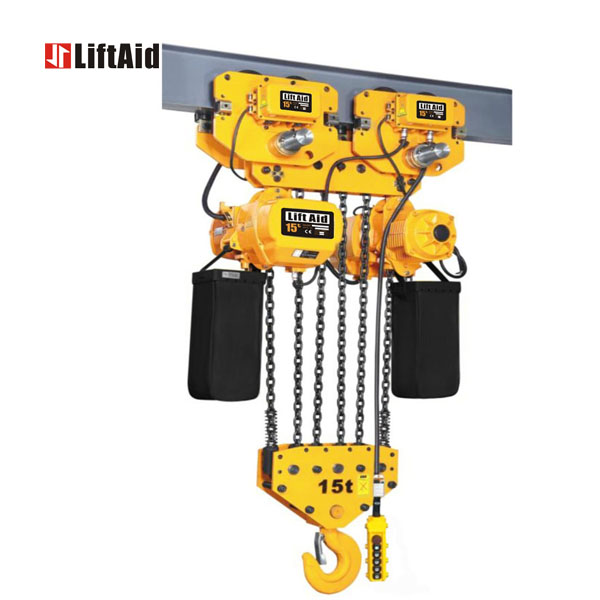

Heavy Duty Electric Chain Hoist 10t-30t

Available in 3 Phase & 1 Phase
Indigenously developed. Mechanical Parts manufactured as per IS: 3832
Tested at 25 % Overload
Hooks: As per IS: 15560 - 2005
Load Chain: 8 mm, Grade 80, Alloy Steel Material as per IS: 6216
Load Chain Wheel: S.G. Iron Casting – Accurately pocketed
Gears: Alloy Steel Material, precise machined, gear hobbed & case hardened – duly annealed. Gears shall be lubricated with a semi-liquid grease instead of oil, which is less likely to leak, eliminates oil level checks and clings to the gears even after long idle periods.
Motor: Foot Mounted Motor – operating on 415 Volts, 3 Phase/ 1 Phase, 50 Hz AC Supply
Braking Mechanism: Screw & Friction Disc Type – Self actuating
Control Panel Unit: Totally enclosed to protect from Weather, giving output at 24 Volts to the Operational Control Station (Push Button Station).
Operational Control Station: Suspended from Hoist with a Cable & supporting Wire rope – with two push buttons extendable to four / six push button station. Operated with 24 Volts.
Guarantee: One Year from the date of sale on F.O.R. Ahmedabad basis, for free repair, replacements of any part proved defective in material or workmanship.
