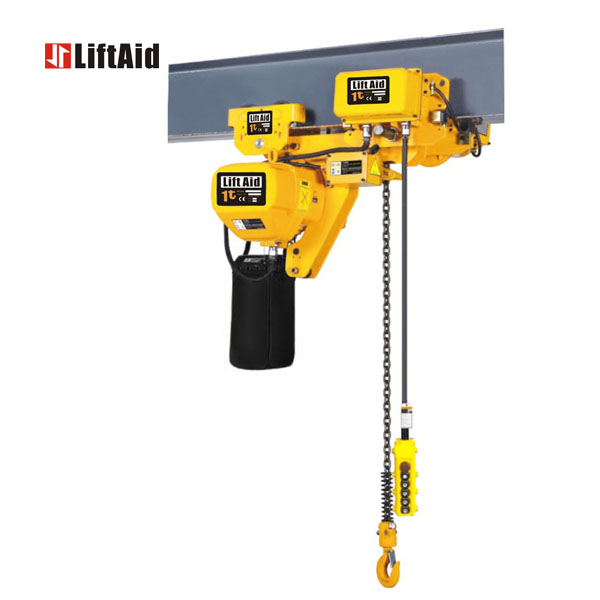

Low Headroom Chain Hoist 1t-20t
Low Headroom Chain Hoist 1t-20t
SPECIFICATIONS
For single speed| Capacity(t) |
0.5 |
1 |
1.5 |
2 |
2.5 |
3 |
5 |
10 |
|||
| Product Code |
LHHL0.5-01S |
LHHL01-01S |
LHHL1.5-01S |
LHHL02-01S |
LHHL02-02S |
LHHL2.5-01S |
LHHL03-01S |
LHHL03-02S |
LHHL05-02S |
LHHL10-04S |
|
| Lifting Speed(m/min) |
7.8 |
6.8 |
8.8 |
6.8 |
3.4 |
5.4 |
5.6 |
4.4 |
2.8 |
2.7 |
|
| Lifting Motor |
Output(kw) |
0.75 |
1.5 |
3.0 |
3.0 |
1.5 |
3.0 |
3.0 |
3.0 |
3.0 |
3.0×2 |
| Rating(%ED) |
40 |
||||||||||
| Power Supply |
3Phase,220V-600V |
||||||||||
| Control Voltage |
24V/36V/48V |
||||||||||
| Load Chain Fall Number |
1 |
1 |
1 |
1 |
2 |
1 |
1 |
2 |
2 |
4 |
|
| Load Chain(mm) |
φ6.3 |
φ7.1 |
φ10.0 |
φ10.0 |
φ7.1 |
φ11.2 |
φ11.2 |
φ10.0 |
φ11.2 |
φ11.2 |
|
For dual speeds
| Capacity(t) |
0.5 |
1 |
1.5 |
2 |
2.5 |
3 |
5 |
10 |
||||||
| Product Code |
LHHL0.5-01D |
LHHL01-01D |
LHHL1.5-01D |
LHHL02-01D |
LHHL02-02D |
LHHL2.5-01D |
LHHL03-01D |
LHHL03-02D |
LHHL05-02D |
LHHL10-04D |
||||
| Lifting Speed(m/min) |
7.8/2.6 |
6.8/2.3 |
8.8/2.9 |
6.8/2.3 |
3.4/1.1 |
5.4/1.8 |
5.6/1.9 |
4.4/1.5 |
2.8/0.9 |
2.7/0.9 |
||||
| Lifting Motor |
Output(kw) |
0.75/0.25 |
1.8/0.6 |
3.0/1.0 |
3.0/1.0 |
1.8/0.6 |
3.0/1.0 |
3.0/1.0 |
3.0/1.0 |
3.0/1.0 |
3.0×2/1.0×2 |
|||
| Rating(%ED) |
40/20 |
|||||||||||||
| Power Supply |
3Phase,220V-600V |
|||||||||||||
| Control Voltage |
24V/36V/48V |
|||||||||||||
| Load Chain Fall Number |
1 |
1 |
1 |
1 |
2 |
1 |
1 |
2 |
2 |
4 |
||||
| Load Chain(mm) |
φ6.3 |
φ7.1 |
φ10.0 |
φ10.0 |
φ7.1 |
φ11.2 |
φ11.2 |
φ10.0 |
φ11.2 |
φ11.2 |
||||
